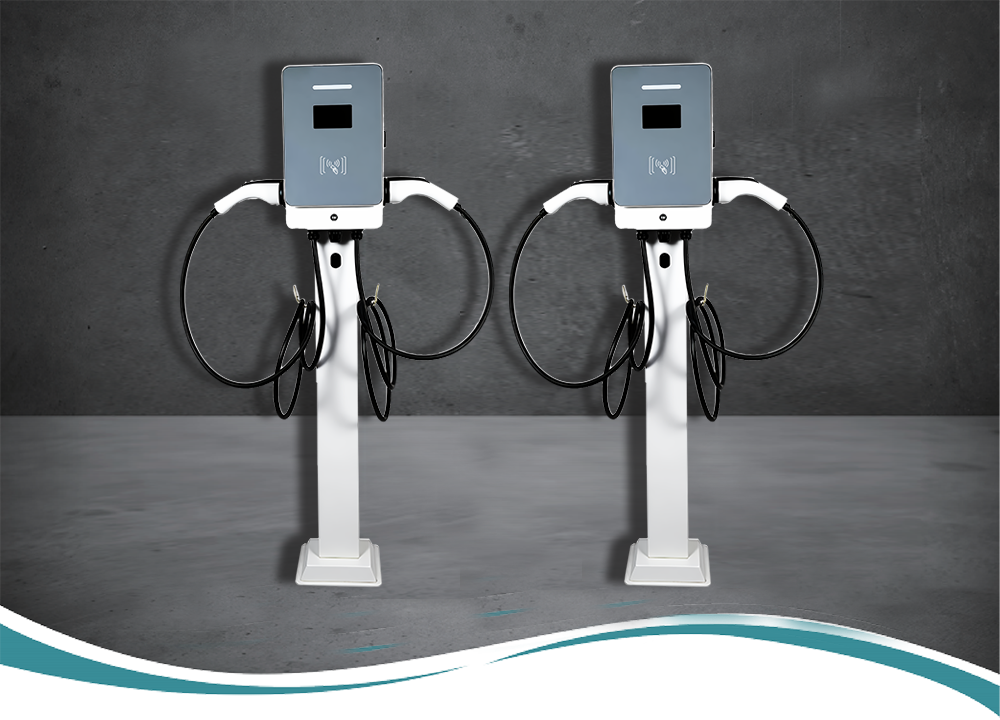

7/14KW integrated AC charging station, upgraded appearance, stylish and simple, easy to install. Free choice of floor installation or wall mounted installation, providing safe, reliable, stable and efficient services for electric vehicles, suitable for scenarios such as villa courtyards, underground garages, schools, residential buildings, and unit courtyards.

1. Environmental Parameters (High-Temperature Desert Optimized)

• Operating Temperature: -10°C ~ 75°C

• Storage Temperature: -20°C ~ 85°C

• Relative Humidity: 5%–95% RH (non-condensing)

• Altitude: ≤ 2000 m (derate above 2000 m)

• Ingress Protection: IP54 (dustproof, splash-proof, desert-ready)

2. Electrical Parameters (Middle East Standard: 230V/400V, 50Hz)

• Nominal Input Voltage: 230 VAC ±15%

• Input Voltage Range: 195–437 VAC (single/three-phase compatible)

• Frequency: 50 Hz

• Power Factor: ≥ 0.99

• THDi: ≤ 5%

• Output Voltage: 100–1000 VDC (continuously adjustable)

• Output Current:

  • 7KW: 32 A

  • 14KW: 63 A

• Output Power: 7 kW / 14 kW

• BMS Auxiliary Power: 12 VDC

• Peak Efficiency: 97.5%

• Noise Level: < 50 dB

• Low standby power consumption

3. Mechanical & Operation Parameters

• Installation: Floor-standing / Wall-mounted

• Connector Quantity: 1–2 guns

• Cable Length: Standard 5 m

• Start Methods: Mobile APP, RFID card, local button, VIN

• Display: 4.3-inch LCD

• Communication: CAN

• Cooling: Air cooling (high-temperature resistant)

4. Protection Functions

• Over-voltage protection

• Over-current protection

• Short-circuit protection

• Leakage protection

• Over-temperature protection

• Lightning / surge protection

• Reverse connection protection

5. Features & Applications

• Designed for Middle East high-temperature, dry, dusty environment

• High efficiency, low energy loss, low operation cost

• Safe, reliable, intelligent BMS communication

• Wide compatibility with all EV models

• Scenarios: villas, apartments, parking, hotels, malls, public stations

6. Compliance

• Meets GCC, SASO, IEC standards

• Adapted to UAE, Saudi Arabia, Qatar, Kuwait, Oman, Bahrain grids

7. The 14kw AC all-in-one machine is a lithium power battery charging device designed and produced using internationally advanced soft switching technology according to the charging needs of electric vehicle equipment

Machine products. Equipped with a CAN communication interface, it communicates in real-time with the battery management system BMS and the flash charging backend monitoring system to optimize and reliably protect the charging of lithium power batteries.

Safety: High protection, low noise design (<50dB), strong environmental adaptability.

Efficient charging: The use of upgraded modules helps improve charging efficiency and reduce energy loss. The maximum efficiency is up to 97.5%. The device has low standby power consumption, reduces operating costs, and improves operational efficiency.

Multiple protections: including overvoltage protection, overcurrent protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the charging process.

Easy to operate: Equipped with a simple and easy to understand interface, users can conveniently perform charging operations.

Intelligent control: It can achieve precise control and monitoring of the charging process, such as automatically adjusting charging parameters based on battery status.

Status display: Clearly display relevant information about charging, such as charging voltage, current, battery level, charging time, etc., allowing users to keep track of the charging progress at any time.

Strong compatibility: It can adapt to various types of electric vehicles and meet the charging needs of different vehicle models.
